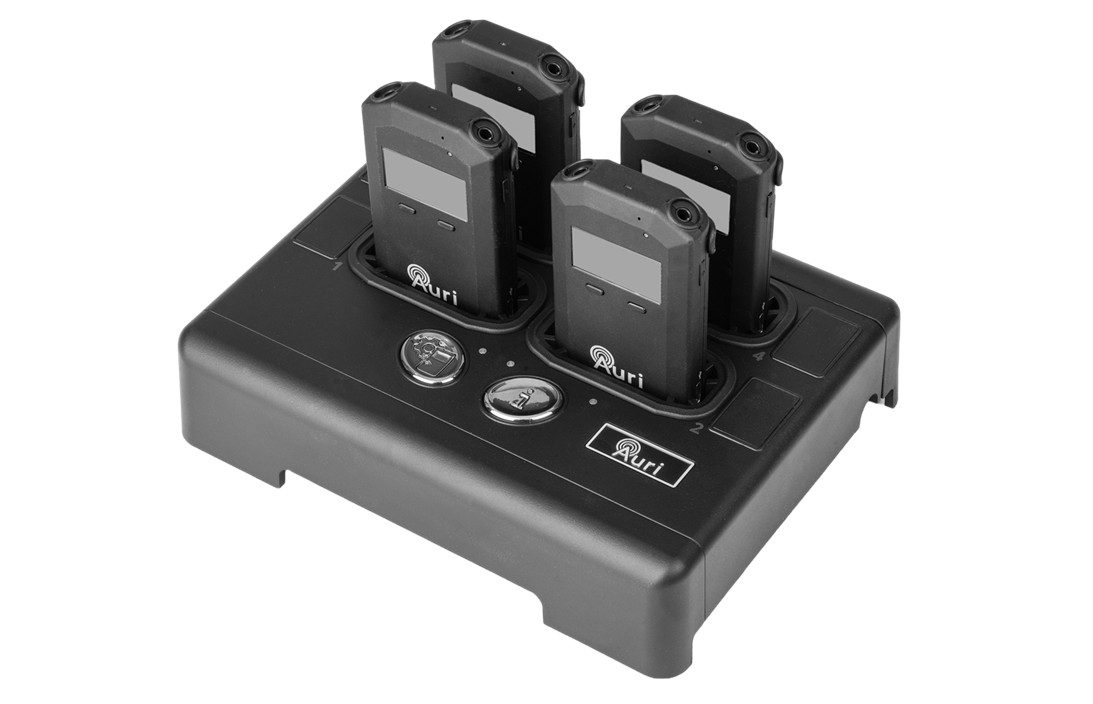

Auri Docking Stations are designed for flat surfaces and wall mounting, with four and sixteen receiver slots, respectively. But these docks are more than just chargers—they offer network capability and can store receiver configurations, enabling centralized management, programming, and configuration.
Category: Venue Amplifiers and Accessories
Auri Docking Stations are designed for flat surfaces and wall mounting, with four and sixteen receiver slots, respectively. But these docks are more than just chargers—they offer network capability and can store receiver configurations, enabling centralized management, programming, and configuration.
Features
- Network capability
- Receiver configuration storage
- Centralised programming & configuration
Includes
- 1x Auri-D4 or Auri-D16 Docking Station
- 1x LA-210 Power Supply
- 1x Quick Start Guide and Safety Data Sheet
Specifications
Network
| Port speed | 100 Mbit |
| IP address | DHCP, static or link-local |
| Protocols | mDNS, UDP (unicast), RTP (multicast), RTCP (multicast) |
| Security | UDP communication AES256-GCM |
Controls and Indication
| Buttons | Copy and Status buttons Recessed restart and factory reset buttons |
| Setup/Programming | Via Auri™ Manager Software over network |
| LEDs | Copy LED (red) and Status LED (amber), see handbook for states |
Power
| Power Supply Input | 100-240 VAC, 50-60 Hz |
| Power Supply Output | 12 VDC, 4.0 A, 48 W |
| Power Supply Connector | 5.5 mm (.22 in.) OD x 2.3 mm (.09 in.) ID, barrel type |
| Power Cable | 1.8 m (72 in.) Input Power Cable, 1.1 m (43 in.) Output Cable |
Physical
| Dimensions | Auri-D4 – 50 x 192 x 150 mm (1.97 x 7.56 x 5.89 in.) Auri-D16 – 50 x 192 x 375 mm (1.97 x 7.56 x 14.77 in.) |
| Unit Capacity | 4 or 16 Units |
| Weight | Auri-D4 – 0.65 kg (1.43 lbs.) Auri-D16 – 1.73 kg (3.81 lbs.) |
| Shipping Weight | Auri-D4 – 1.56 kg (3.44 lbs.) Auri-D16 – 2.79 kg (6.15 lbs.) |
| Colour | Black with chrome buttons |
| Mounting | Place on flat surface or use wall mounting slots |
Environmental
| Temperature – Storage | -40 °C (-40 °F) to 70 °C (+158 °F) |
| Temperature – Operation | -10 °C (14 °F) to 40 °C (+104 °F) |
| Relative Humidity | 0 to 95% relative humidity, non-condensing |
| IP Rating | IP20 |
Compliance
| Standards | CE, UKCA, RCM, REACH, WEEE |
Network Requirements
| Usage | Type | Address | Port |
| Device discovery | mDNS (Multicast) | 224.0.0.251 | 5353 |
| Control | UDP (Unicast) | Device IP (DHCP, Static or Link Local) | 55666, 56666 |
| Firmware Update | TFTP | Device IP | 69 |
Auri Docking Station Datasheet
📃Download UP3B602-1_Auri_D4_D16_Docking_Station_datasheet
Auri Docking Station Quick Start Guide
📃Download UP1B602-1_Auri_D4_and_D16_Docking_Station_Quick_Start_Guide_Web
