Item: LWR-1050-P1

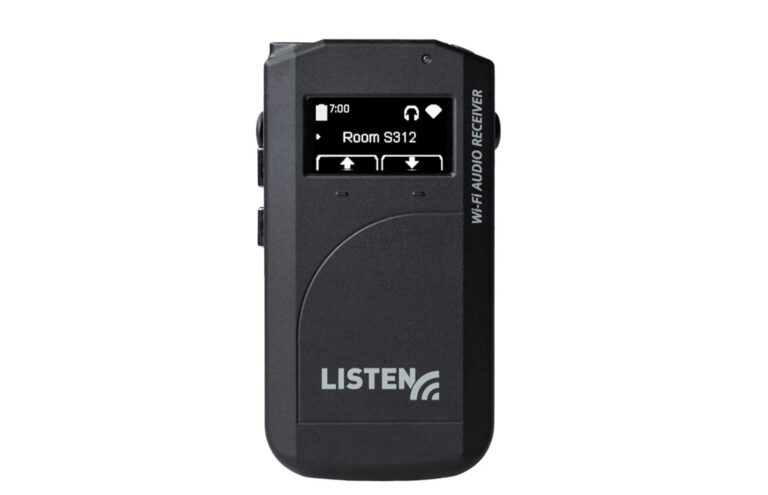

This comprehensive package features the LWR-1050 Wi-Fi Audio Receiver, an Ear Speaker, a Lanyard, and an Advanced Neck Loop for telecoil-equipped hearing aids, providing a complete assistive listening solution for venues. The state-of-the-art LWR-1050 receiver streams high-quality, low-latency audio in real-time from a ListenWIFI Audio Server via Wi-Fi, meeting essential disability and accessibility standards.
Category: Venue Amplifiers and Accessories
Designed for automation, the LWR-1050 adjusts to the appropriate audio channel based on its location through Listen Beacons, ensuring that guests receive the correct audio in various venue settings. This system is particularly beneficial for venues preferring to manage dedicated hearing assistance devices over supporting personal smartphones, offering a straightforward option with wired headphones or an inductive neck loop for T-Coil hearing aids.
Ideal for diverse environments like classrooms, places of worship, and theatres, the LWR-1050 enhances guest experiences by delivering clear and precise audio, making it an outstanding choice for assistive listening needs.
Features :-
- Package includes Receiver, Ear Speaker, Lanyard, and Neck Loop
- Dedicated Wi-Fi Audio Receiver for assistive listening and language translation
- Meets ADA and worldwide disability compliance (DDA, IBC, CBC, etc.)
- Dedicated devices for venues where personal smartphones are not allowed
- Backup devices for venues who want to avoid the hassle of supporting personal smartphones
- Extremely easy for guests to use
- Automatically connects to proper channel based on location (with LA-490 beacons)
- Superior audio performance & Industry-leading latency
- Great quality and reliability
- Compatible with standard earbuds & headphones (CTIA compliant)
- Compatible with hearing aid telecoils with optional Neck Loop (LA-438)
- Field Replaceable lithium-ion rechargeable batteries
- Easy setup, management, and tracking using ListenWIFI Manager for Windows®
Includes :-
- One (1) LWR-1050 Wi-Fi Audio Receiver
- One (1) LA-365 Rechargeable Li-ion Battery
- One (1) LA-164 Ear Speaker
- One (1) LA-445 Breakaway Lanyard
- One (1) LA-438 Advanced Neck Loop (Adult)
- One (1) Quick Start Guide
Specifications :-
Physical
| Dimensions (H x W x D) with Belt Clip | 10 x 5.4 x 2.4 cm (3.93 x 2.13 W x 0.93 in.) |
| Unit Dimensions (H x W x D) | 10 x 5.4 x 1.6 cm (3.93 x 2.13 W x 0.63 in.) |
| Unit Weight | 80 g (2.82 oz.) |
| Shipping Weight | 105 g (3.7 oz.) |
| Enclosure material | PC plastic (IR transparent) |
| Display | 31 x 16 mm (1.22 x .63 in) , 64 x 128 pixel OLED display |
| LED | Multi-colored, multi-function |
| Light Sensor | Visible light, automatically adjusts display brightness |
| Color | Black, Chrome Buttons |
| User Controls | Volume up/down, channel up/down, language selection, power, status |
| Headphone Connection | 3.5mm (1/8″) headphone jack, TRRS, CTIA compliant |
| USB Connection | USB-Micro for charging and programming |
| Dock Connection | 4 contacts w/ magnetic latch for charging and programming via docking station |
| Belt Clip | Removable and Reversible |
| Battery Door | Removable for battery replacement |
Audio
| Audio Output Method | 3.5mm connection for wired headphones or inductive neck loops |
| Frequency Response (system) | 20 Hz – 20 kHz ± 1dB (at nominal level) |
| Distortion (system) | < 1% Total Harmonic Distortion (at nominal level) |
| Signal to Noise Ratio (system) | > 74 dB (at nominal level) |
| Dynamic Range (system) | 86 dB (at maximum level) |
| Latency (system) | 40-60 ms, dependent on network, traffic, and QOS |
Commuications
| Wi-Fi Bands | 802.11 a/b/g/n (2.4 and 5 GHz) |
| Wi-Fi Frequencies | 2.4 GHz Channels: 1,2,3,4,5,6,7,8,9,10,11 |
| 5 GHz Channels: 36,40,44,48,52,56,60,64,100,104,108,112,116,120*,124*,128*,132,136,149,153,157,161,165 | |
| *Channels not available in North American variant (A0) | |
| Bluetooth | 5.0 |
| USB | 2.0 |
| Audio | 125 kbps for audio streaming |
| Security | TLS 1.2 (AES 128 bit) |
| Infrared (IR) | Protocol: SyncLink IR, 850nM |
Controls
| User Controls | Power on/off, display on/off, channel selection, volume up/down, language selection |
| Setup/Programming | Via Manager Software and USB port on receiver Via Manager Software and USB port on Docking Station Directly in Docking Station using the clone operation |
| Channel Triggering | Automatic via SyncLink Infrared (IR) when in proximity to LA-490 beacons. |
Indicators
| Display | Channel playing, available channels, battery level with time remaining, Wi-Fi signal strength, volume status, charging status, language selection, profile name |
| LED | Blue flashing – receiver is turning on/booting up |
| Red flashing – indicates receiver has not been configured or Wi-FI is unavailable | |
| Green flashing – receiver is charging | |
| Green solid – receiver is fully charged |
Power and Charging
| Power Supply | USB-Micro or Docking Station – 5V, 500mA |
| Battery Type | Lithium – ion, rechargeable, field replaceable |
| Battery Size | 1200 mAh |
| Battery Life | 7 hours of continuous audio streaming |
| Battery Charge Time | Fully charged in < 4 hours (dead battery) |
| Power Save Modes | Auto Off – powers down on loss of audio (adjustable OFF, 10, 20, or 30 min) |
| Auto Power – powers down/up upon insertion/removal of charger (adjustable ON/OFF) | |
| Jack Sense – powers down/up upon insertion/removal of headphones (adjustable ON/OFF) |
Environmental
| Temperature – Operation | -10 ºC (14 ºF) to +40 ºC (104 ºF) |
| Temperature – Storage | -20 ºC (-4 ºF) to +50 ºC (122 ºF) |
| Relative Humidity | 0 to 95% relative humidity, non condensing |
Complaince
| Regulatory Standards | FCC, CE, ROHS, UKCA |
Warranty
| Receiver Warranty | 2 years |
