Reveal 16i Full HD digital magnifier with XY table

Edit Microsystems » Reveal 16i Full HD digital magnifier with XY table

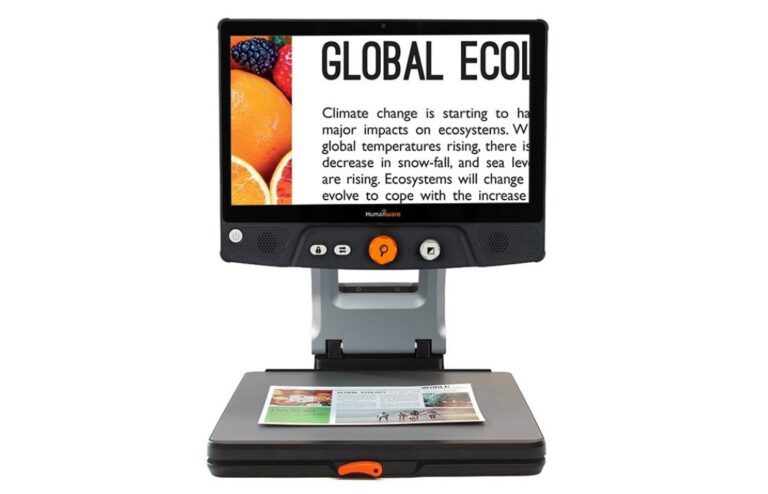

Reveal 16i Full HD digital magnifier with XY table

Reveal 16i Full HD digital magnifier with XY table

FREEGDS

FREEGDS
Share this product

Description

Overview

  • Google Play Store accessible to download thousands of applications
  • Google Docs, Drive, Gmail, Google+, Hangouts, Chrome already installed. Reveal 16i is also connected to Bookshare
  • Optical character recognition (OCR) and Text-to-speech (TTS) capabilities
  • Digital editing
  • Touchscreen
  • Free automatic software updates
  • Internet and Bluetooth connections
  • USB and HDMI ports, headphone jack
  • Adjustable 16-inch screen
  • 10X magnification optical zoom
  • Up to 45X digital magnification
  • Real 1X
  • Polarized LEDs
  • Optional battery available
  • Optional carrying case
  • Robust and foldable
  • Comes with a XY table

Reveal 16i is a unique, smart, intuitive, and compact foldable magnifier. Designed with simplicity in mind, this new versatile digital magnifier is the perfect solution to help you stay productive in your daily life.

BE SMART, BE CONNECTED!

Reveal 16i is a smart all-in-one device that allows you to video chat with friends, check your emails, watch videos on YouTube, download applications from Play Store and have all the printed material read to you thanks to its integrated Optical character recognition (OCR) and Text-to-speech (TTS) capabilities.
You can also open your books and take digital notes before sharing them with others thanks to Reveal 16i.
Reveal 16i is an ideal tool that adapts to you rather than you to it. It has an integrated touchscreen allowing you to customize your experience. You can choose to use the touchscreen like you would with a tablet or use the buttons.

ONLY ACCEPT THE BEST!

Thanks to the Reveal 16i’s 10x optical zoom camera, you will get an uncompromised image quality. You can read books or newspapers and even see distant objects like the beautiful landscape around you thanks to the distance viewing camera.

EASY TO USE, EASY TO STORE!

Reveal 16i is ergonomically designed to be easy to fold, carry and store.

Easily store Reveal 16i when not in use or bring it with you as needed by using the optional carrying case. It’s compact, lightweight and takes little space.



Unit Dimensions and Weight

Item Height Width Depth Weight
Reveal16i Open 14.57” 14.96” 18.3” 14.33 lbs
370 mm 380 mm 464 mm 6500 g
Reveal16i Folded 5.9” 14.96” 18.6” 14.33 lbs
150 mm 380 mm 473 mm 6500 g
Weight with Battery
15.2 lbs
6900 g

Specifications

Screen Specifications
Display 15.6” diagonal – 1080p IPS eDP Active Capacitive 10-point Touch Glass Panel
Aspect Ratio 16-9
Resolution 1920×1080
Minimum Viewing angle 70
Pixel Arrangement RGB Vertical Strip
Power Consumption 3.08W
Display frequency 50Hz, 60Hz
TouchScreen Yes
Live Camera Specifications
Resolution 1080p
Minimum Live Magnification 1x
Maximum Live Magnification 45x
Minimum Optical Magnification 1x
Maximum Optical Edge Magnification 10x
Focus Auto-focus
OCR Camera Specifications
Resolution 21 Mpx
Freeze Frame Yes
Focus Close-up: Fix auto-focus

Far: auto-focus or locked auto-focus

Battery Specifications
Battery autonomy 5 to 6 hours with Lighting on.
Battery charging time 6 hours

Features

Features
Android access Yes
Internet access Yes
Bluetooth Yes
USB 3.0 and Headphone Jack Yes
Microphone and front Facing Camera Yes
OCR on Latin Characters 6 pts
OCR on Chinese Characters 8 pts
